LILLIPUT Q7 7" FULL HD IPS kontroll monitor SDI & HDMI I/O

Ugrás a termék információkhoz
LILLIPUT Q7 7 LILLIPUT Q7 7 LILLIPUT Q7 7 LILLIPUT Q7 7 LILLIPUT Q7 7 LILLIPUT Q7 7
LILLIPUT Q7 7
LILLIPUT Q7 7
LILLIPUT Q7 7
LILLIPUT Q7 7
LILLIPUT Q7 7
LILLIPUT Q7 7
  • Gyártó: Lilliput
  • Cikkszám: LILLIPUTQ7
  • Elérhetőség:
    Rendelésre
  • Átlagos értékelés:
185.000 Ft (145.669 Ft + ÁFA)
Menny.:db
Kosárba

Villámgyors
szállítás

Óriási
raktárkészlet

Segítünk ha
elakadtál

Leírás és Paraméterek

Display Screen 7" (17.8 cm)
Display Resolution 1920 x 1200 (Dot)
Active Area (WxH) 151.2 x 94.5 mm
Dot Pitch W x H: 26.25 x 78.75 µm
Aspect Ratio 16:10
Contrast Ratio 500:1
Brightness 500 cd/m²
Viewing Angle 170° / 170° (H/V)
Light Source Single LED (side-light type)
Surface Treatment Hard coat on the polarizer (ATW)
Response Time Typical: 16 ms (Fall time)Maximum: 27 ms (Rise time) 35 ms (Fall time)

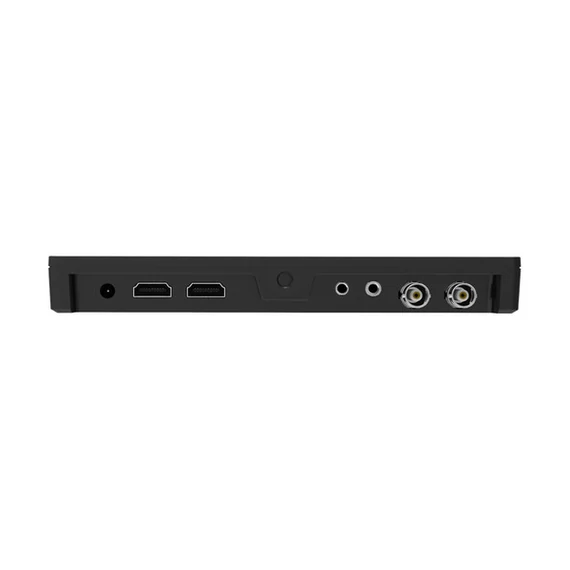

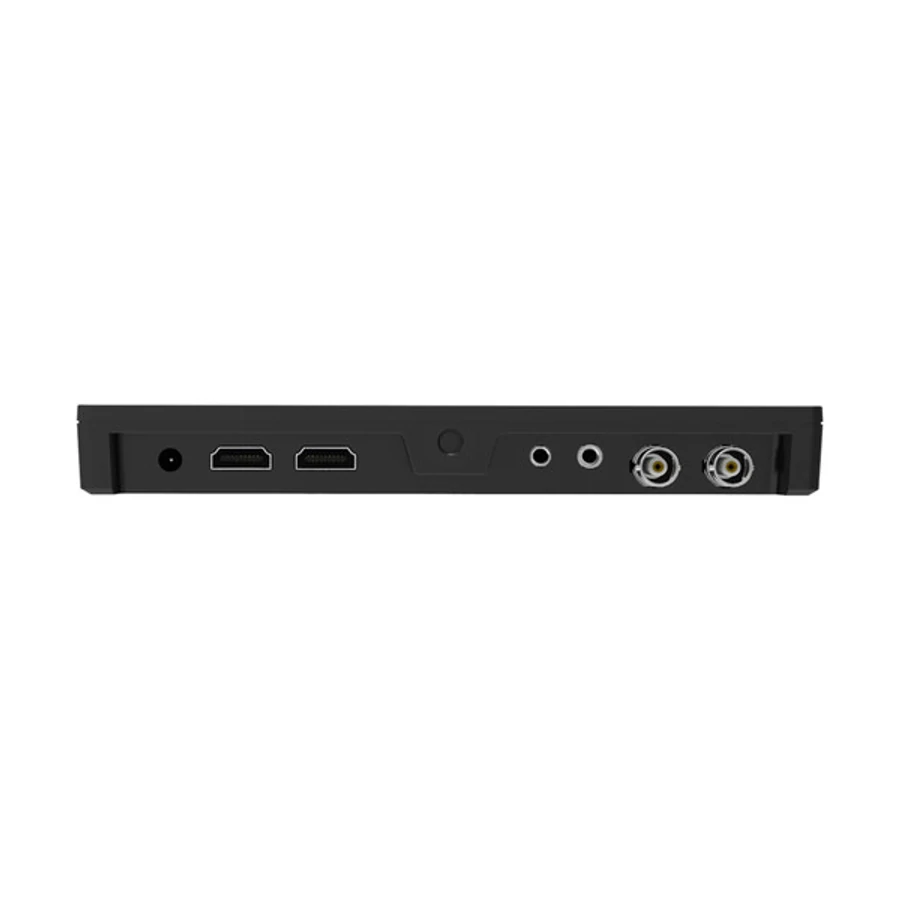

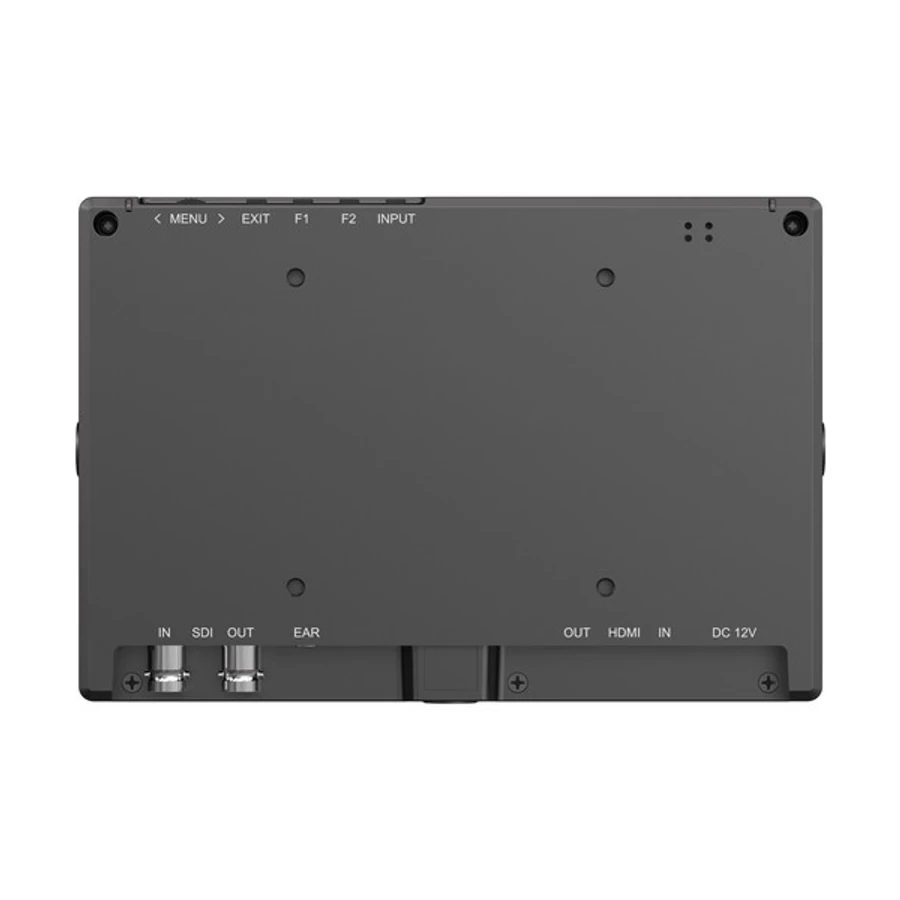

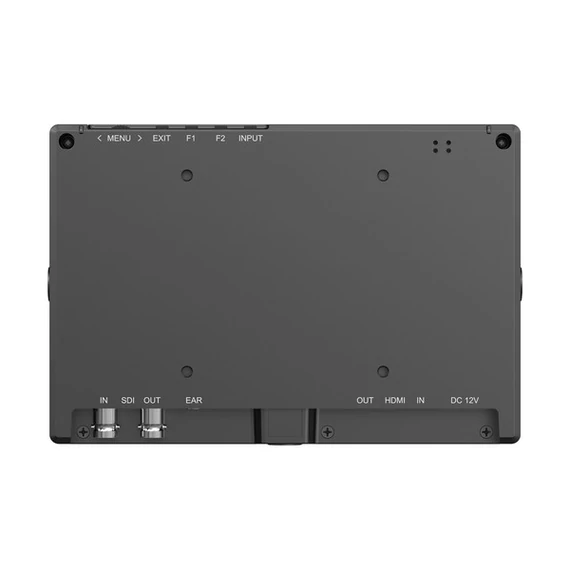

Input 1 x 3G-SDI 1 x HDMI
Output 1 x 3G-SDI 1 x HDMI
Audio 1 x Speaker 1 x 3.5 mm Mini jack
SDI Formats Supported SMPTE-125M: 480i (59.94)SMPTE-274M: 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98 sF) SMPTE-292M: 1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98 sF) SMPTE-296M: 720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98) SMPTE-372M: 720p (60 / 59.94 / 50) 1080i (29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) SMPTE-425M-AB: 1080p (60 / 59.94 / 50) Level A & Level B 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) Level B 2 x 1080i (60 / 59.94 / 50) ITU-R BT.656: 576i (50)
HDMI Format Support 1080p, 1080i, 720p, 576p, 576i, 480p, 486i
Current 1 A
Input Voltage 7 to 24 VDC
Power Consumption ≤13 W
Storage Temperature -22 to 158°F (-30 to 70°C)
Operation Temperature -4 to 140°F (-20 to 60°C)
Operation Time 240 h at 140°F (60°C) and 90% RH
Dimensions (L x W x D) 7.2 x 4.9 x 0.9" (182 x 124 x 22 mm)
Weight 14 oz (405 g)

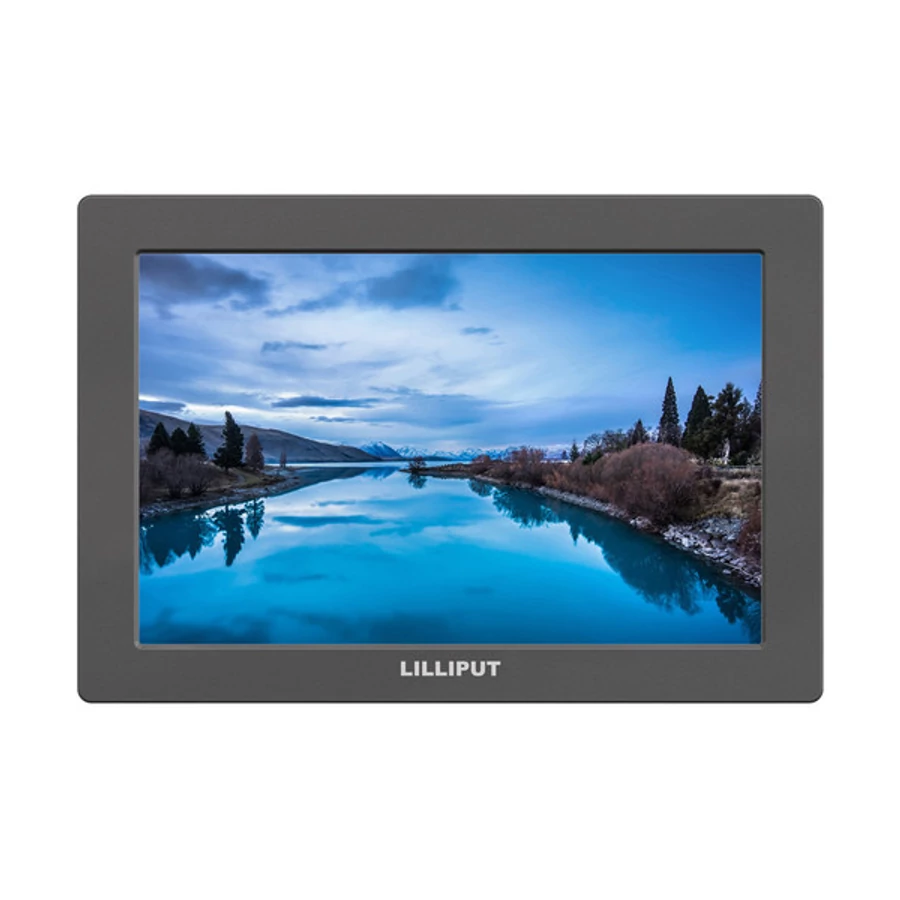

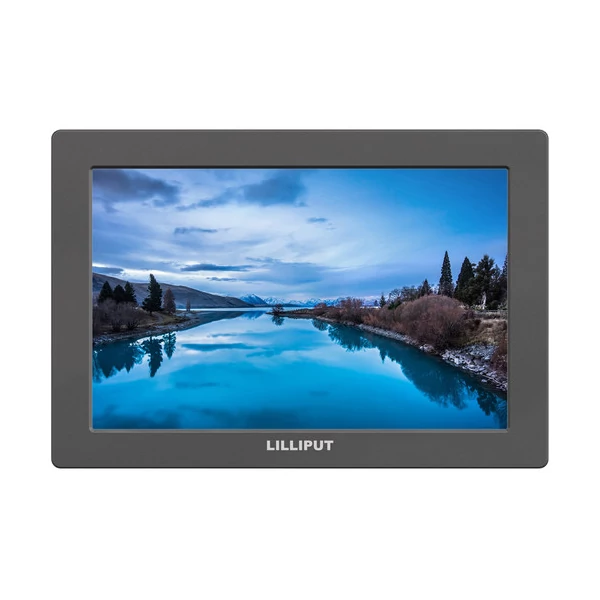

  The Q7 Full HD Monitor with SDI & HDMI Cross Conversion from Lilliput features a 7" LCD panel with 1920 x 1200 resolution, 1000:1 contrast ratio, and 500 cd/m² brightness. It has an aspect ratio of 16:10 and 170°/170° wide viewing angles. This field monitor comes integrated with advanced functions such as column YRGB (peak), timecode, waveform, vectorscope, and audio level meter. It also offers additional functions that can assist you in accurately monitoring while shooting video and playing back footage. These functions include pixel zoom, peaking, false color, histogram, exposure, check field, color bar, image flip, and pix-to-pix. The high-quality HDMI and 3G-SDI inputs ensure that the precise color can be conveniently controlled under multiple displays. It comes with SDI and HDMI cross conversion that allows signal transmission from SDI input to HDMI out, and from HDMI input to SDI out. The monitor features a 0.9" slim metal housing that protects it from vibration, drops, and adverse weather conditions.
