LILLIPUT RM-1730S 17,3"-OS SDI kontroll monitor, kihajtható, 1RU rack-be szerelhető

Ugrás a termék információkhoz
LILLIPUT RM-1730S 17,3 LILLIPUT RM-1730S 17,3 LILLIPUT RM-1730S 17,3 LILLIPUT RM-1730S 17,3 LILLIPUT RM-1730S 17,3 LILLIPUT RM-1730S 17,3 LILLIPUT RM-1730S 17,3 LILLIPUT RM-1730S 17,3
LILLIPUT RM-1730S 17,3
LILLIPUT RM-1730S 17,3
LILLIPUT RM-1730S 17,3
LILLIPUT RM-1730S 17,3
LILLIPUT RM-1730S 17,3
LILLIPUT RM-1730S 17,3
LILLIPUT RM-1730S 17,3
LILLIPUT RM-1730S 17,3
  • Gyártó: Lilliput
  • Cikkszám: LILLIPUTRM-1730S
  • Elérhetőség:
    Rendelésre
  • Átlagos értékelés:
463.000 Ft (364.567 Ft + ÁFA)
Menny.:db
Kosárba

Villámgyors
szállítás

Óriási
raktárkészlet

Segítünk ha
elakadtál

Leírás és Paraméterek

LCD Size 17.3" (43.9 cm)
Display Resolution 1920 x 1080 (RGB)
Active Area H x V: 15 x 8.45" (381.89 x 214.81 mm)
Dot Pitch H x V: 0.1989 x 0.1989 mm
Aspect Ratio 16:9
Brightness 300 cd/m2
Contrast 700:1
Light Source LED
Surface Treatment Hard coating (3H) High-resolution adaptable AG
Response Time Rising: 14 ms (typical), 19 ms (maximum) Falling: 11 ms (typical), 16 ms (maximum)
Formats Supported SDI SMPTE-425M-AB: 1080p 60/59.94/50, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98 SMPTE-372M: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 29.97/25/24/23.98, 720p 60/59.94/50 SMPTE-296M: 720p 60/59.94/50/30/29/25/24/23.98 SMPTE-292M: 1080p 30/29.97/25/24/24PsF/23.98/23.98PsF SMPTE-125M: 1080p 30/29.97/25/24/24PsF/23.98/23.98PsF, 1080i 60/59.94/50, 480i 59.94 ITU-R BT.656: 576i 50HDMI 1080p Full HD 1080i 720p 576p 576i 480p 486i
Viewing Angle 178°/178° (H/V)

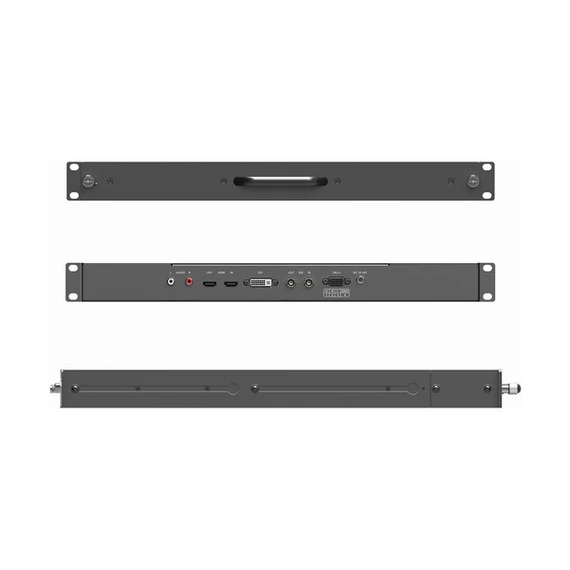

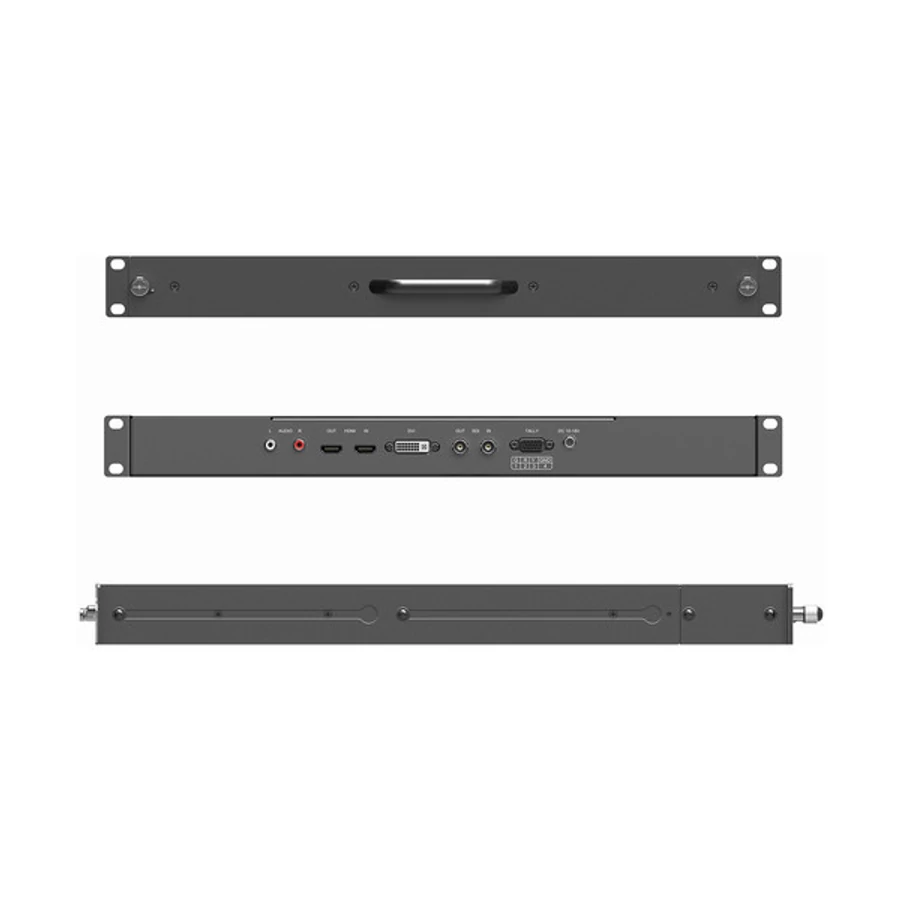

Input and Output Connectors Inputs 1 x 3G-SDI 1 x HDMI 2 x Audio (L/R) 1 x TALLY 1 x DVIOutput 1 x 3G-SDI 1 x HDMI 1 x Earphone jack
Audio 2 x Speakers 1 x Earphone
Power Requirements Current: 2.5 A Input Voltage: 15 VDC
Controls Basic Power, SDI, HDMI, DVI Menu, < > button, exit, user-definable buttonsAdvanced Brightness, contrast, saturation, tint, sharpness, color temp Markers (center/aspect/safety), marker color, marker mat Thickness, scan, aspect, underscan, H/V delay, check field Zoom, freeze, DSLR, waveform, peaking (color/level), false color Exposure, exposure level, histogram Volume, level meter, audio ch, language HDMI-SDI convert, color bar, OSD time, back light, fan, reset
Power Consumption ≤32 W
Speaker 1 W, built-in
Menu Language English/Chinese
Temperature & Humidity Operation: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C) Humidity: 80% RH 240 hours of operation at high temperature/humidity
Dimensions (L x W x D) 19 x 1.7 x 19.9" (48.25 x 4.4 x 50.75 cm)
Weight 18.95 lb (8.6 kg)

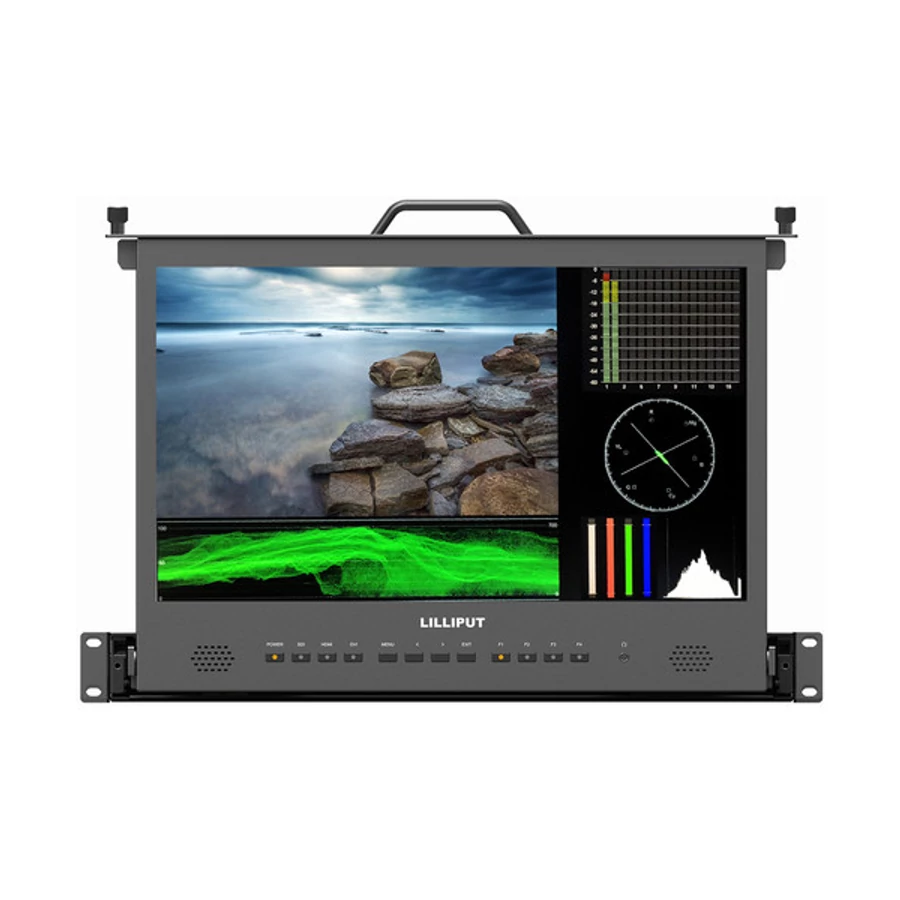

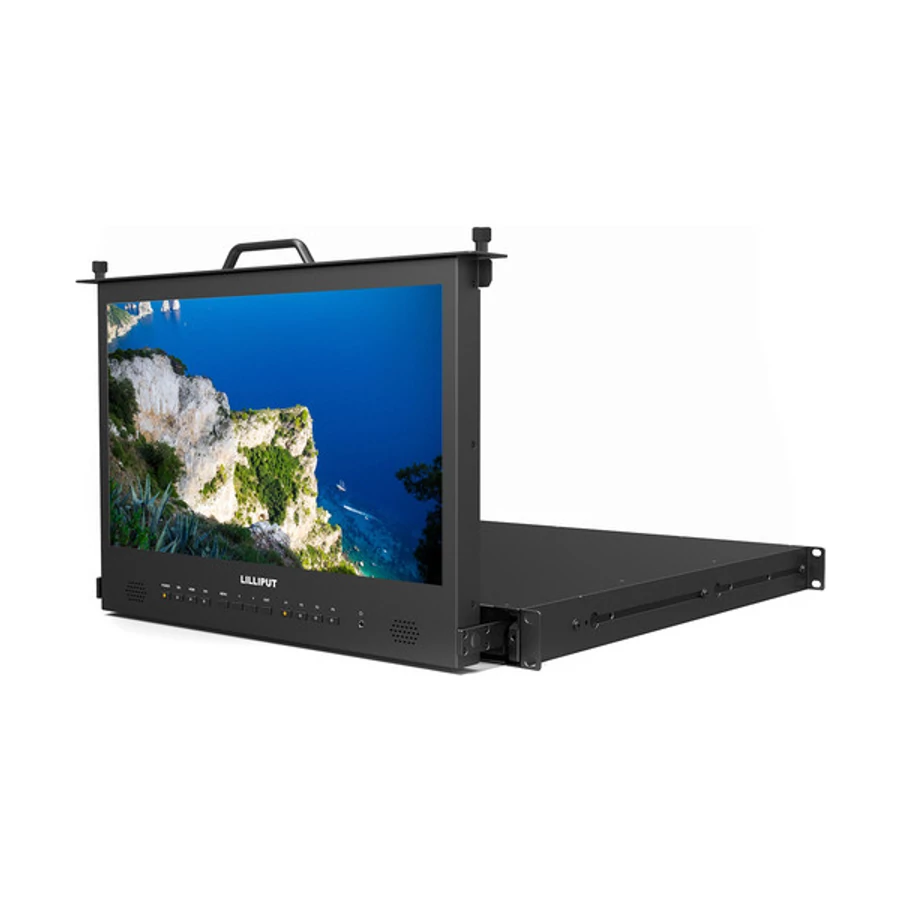

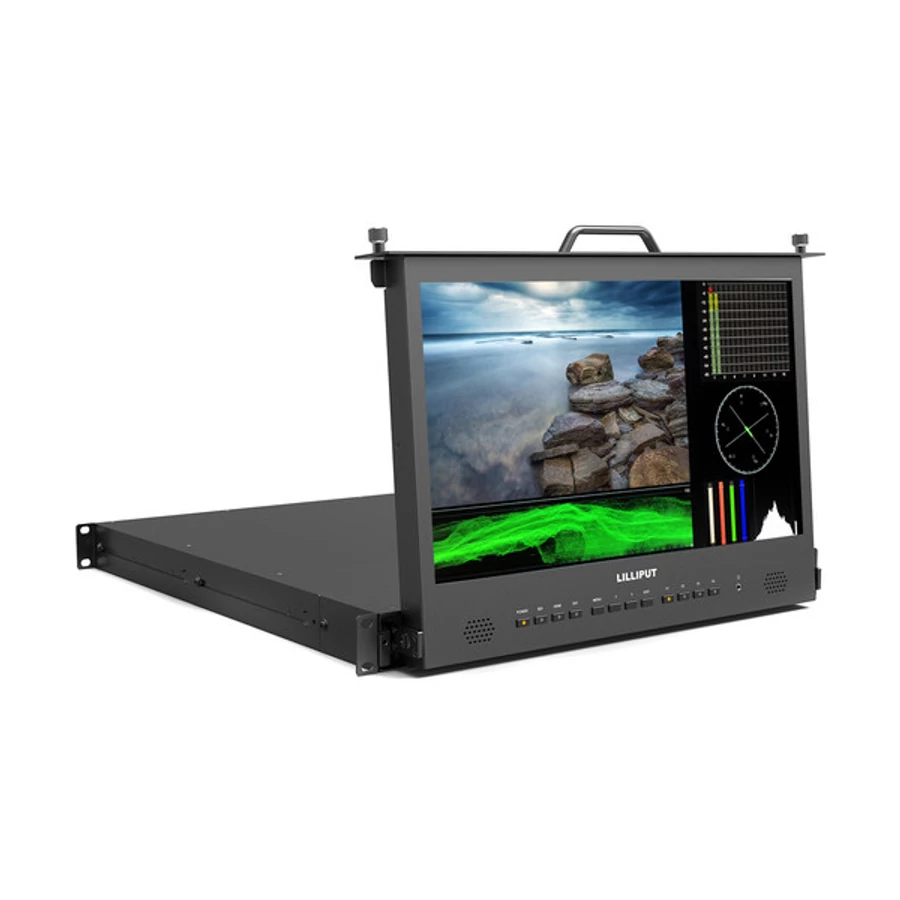

The LILLIPUT RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60. It offers a brightness rating of 300 cd/m2, contrast ratio of 700:1, and viewing angles of 178°. The monitor comes with a host of functions including cross conversion, timecode, pixel zoom, vectorscope, waveform, level meter, peaking, false color, histogram, exposure, check field, color bars, and Image flip. Its 1 RU design allows it to be easily integrated into a studio or post-production rackmount setup.

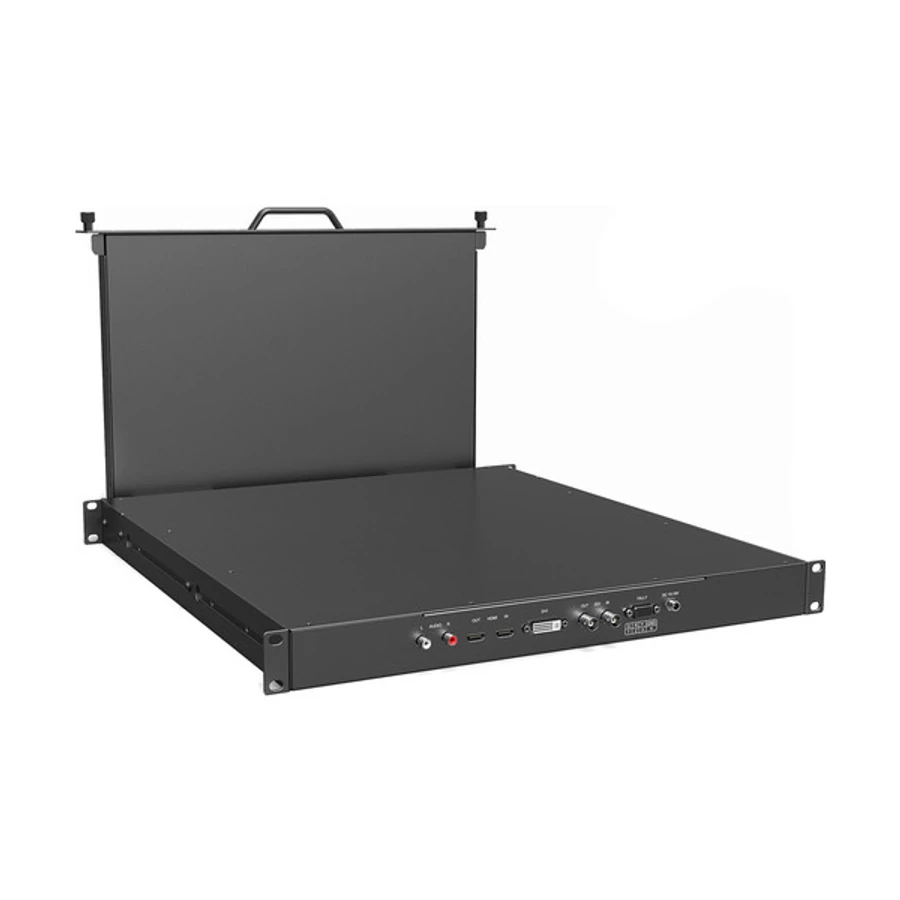

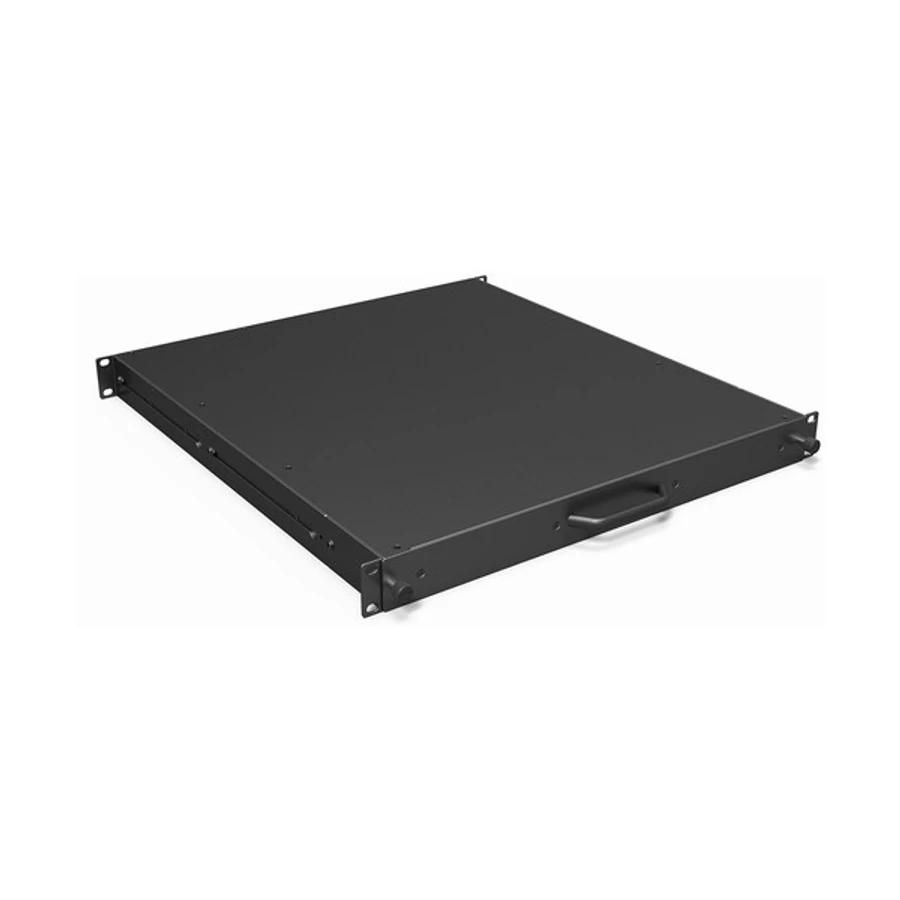

Metal housing with pullout drawer for protection from shocks and drops
Monitor powers off automatically when screen is down and pushed in
Signal cross conversion from SDI to HDMI, and from HDMI to SDI out
Supports various methods of mounting for use in broadcast, on-site monitoring, and live broadcast vans

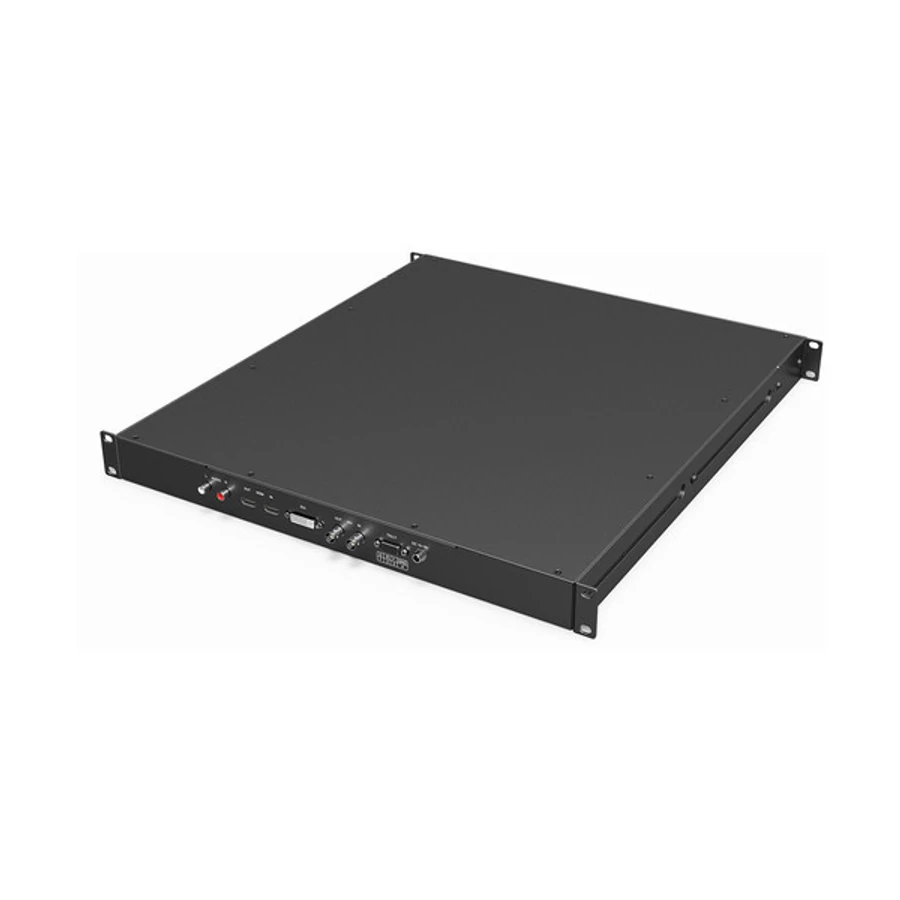

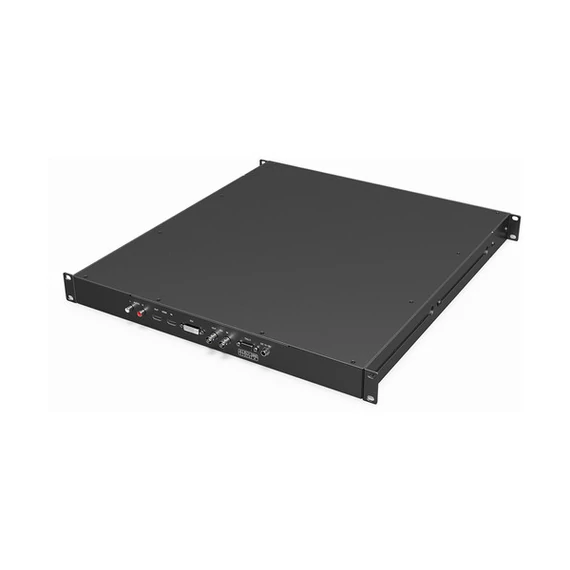

1 RU rackmount design
