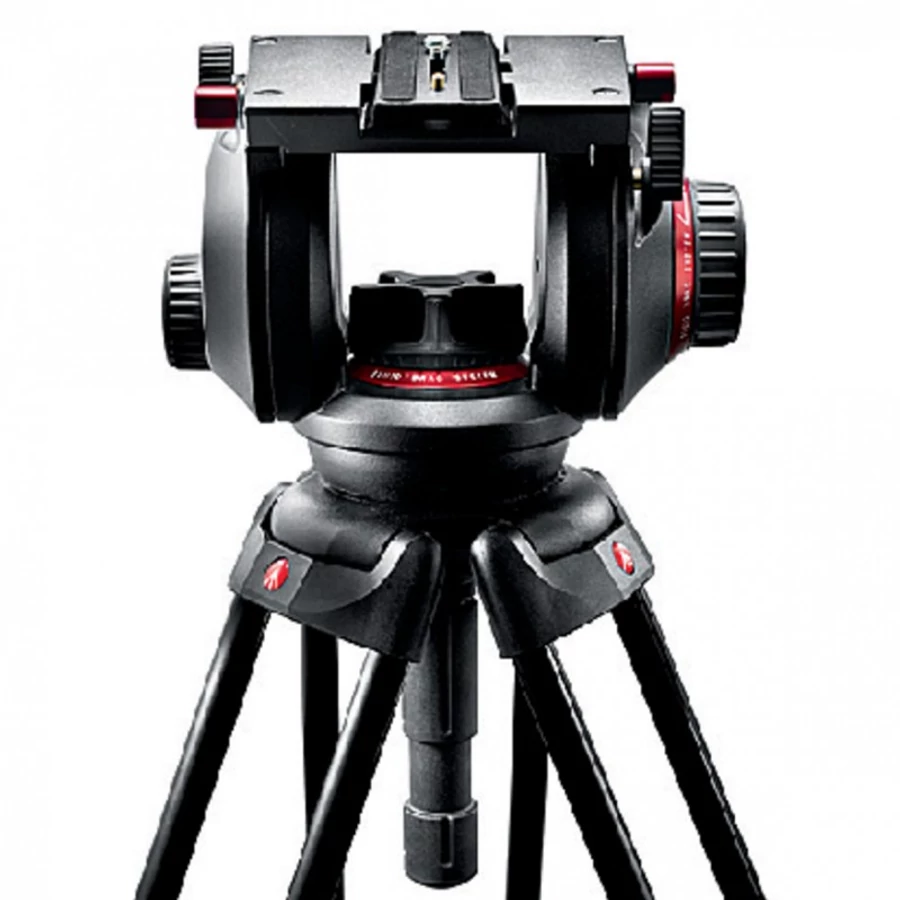

Manfrotto 509 fluid video fej 100 mm félcsészével 509HD

DESCRIPTION

The 509HD is the result of an important technical evolution - the perfect synthesis between an innovative “bridge architecture” and Manfrotto’s cutting edge engineering: Bridging Technology - an exclusive Manfrotto patent. A new bridge leading the videographer and photographer to even better results with today's high-definition cameras. The 509HD’s FDS (Fluid Drag System) is based on variable fluid cartridges on both, TILT and PAN axes; the ergonomics of the controls have been noticeably improved to make use of the FDS even easier. Movement around the axes is smoothed by ball-bearing units which remove all unwanted vibration. All of this guarantees ultimate control and excellent video camera support, no matter what the situation, the shooting style, or the equipment set-up. The 509HD is capable of carrying up to 13,5kg (29.8lb) at 55mm C.O.G or 9Kg (19,8lb) at 125mm C.O.G. and properly counterbalance 12,8Kg (28,1lb) at 55mm C.O.G or 8,5Kg (18.7lb) at 125mm C.O.G.. The two 3/8” threads on the top plate allow accessories, such as monitors and arms, to be fitted straight to the head, thus eliminating the need for extra clamps, saving set-up time and freeing the video camera’s hot shoe for other components. The 509HD features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast. The system can be leveled thanks to the Ø100mm half ball and the illuminated leveling bubble. Systems are available with aluminum twin leg tripods (middle spreader or ground spreader) or carbon fiber single tubes tripod. A new bridge leading the videographer and photographer to even better results with today's high-definition cameras. The 509HD’s FDS (Fluid Drag System) is based on variable fluid cartridges on both, TILT and PAN axes; the ergonomics of the controls have been noticeably improved to make use of the FDS even easier. Movement around the axes is smoothed by ball-bearing units which remove all unwanted vibration. All of this guarantees ultimate control and excellent video camera support, no matter what the situation, the shooting style, or the equipment set-up. The load capacity has also been improved: the 509HD supports kit up to 28.8lb (13kg) at 55mm c.o.g and two 3/8” threads on the top plate allow accessories, such as monitors and arms, to be fitted straight to the head, thus eliminating the need for extra clamps, saving set-up time and freeing the video camera’s hot shoe for other components. 509HD features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast. The system can be leveled thanks to the Ø100mm half ball and the illuminated leveling bubble. Systems available with aluminium twin legs tripods (middle spreader or ground spreader) or carbon fibre single tubes tripod.

Video

Forras: Manfrotto 509HD - JoelS4000 (YouTube)

Forras: Manfrotto 509HD Pro Fluid Video Head Overview | Full Compass - Full Compass (YouTube)
