The rugged TASCAM DR-100mkII offers high-end recording features for musicians and engineers who demand more from their portable recorder. It features four built-in microphones – two cardioid and two omnidirectional – for great sounding recordings. A pair of XLR connectors accept microphone level signals with +48V phantom power for pro-grade condenser microphones, or balanced line-level signals (a new feature on the mkII). The mkII version also adds a S/PDIF digital input, locking connectors and more.

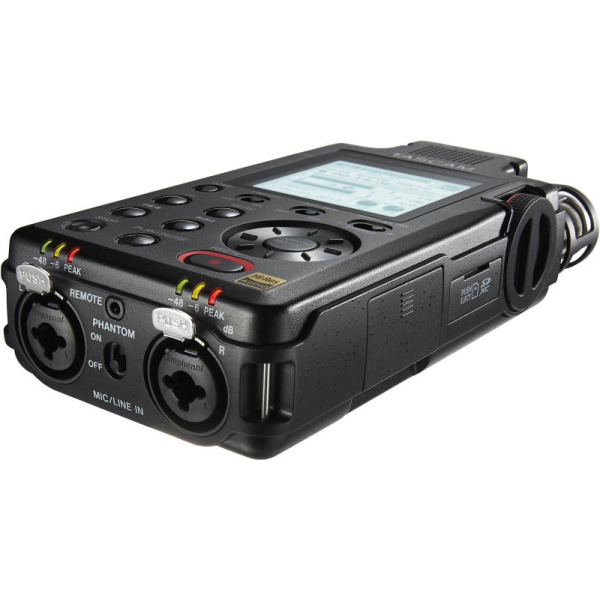

Locking XLR/TRS inputs compatible with +4dBu line level / +48V phantom power with 20dB of head room

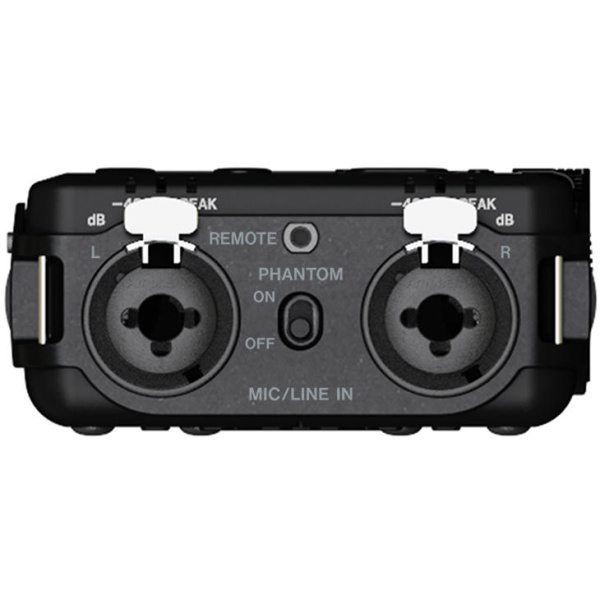

| Locking XLR inputs for balanced output to professional audio equipment are built in to the bottom of the unit. +48V phantom power is available allowing for condenser microphones to be connected. When LINE1 is selected using the switch on the bottom, the XLR input can be used for line level input. In addition to being compatible with +4dBu line level input, 20dB of head room is available. It is also possible to use it as a backup recorder for line level output. The locking connectors help ensure that there are no accidental disconnections on sites.Independent left/right adjustable large rotary input volume knob |
A large rotary input volume knob is equipped for making fine adjustments to the input level. Fine level settings can be made that are not possible with digital +/- operation. The volume for the left and right channels are independent so level differences can be adjusted. When quick operation is needed, it is possible to make fine level adjustments by direct operation.
Rugged aluminum body for use in extreme conditions
Durable aluminum is used for the front and rear of the body. The strong aluminum body gives a luxurious feel and provides excellent durability.
Digital input connector for lossless connection from playback devices

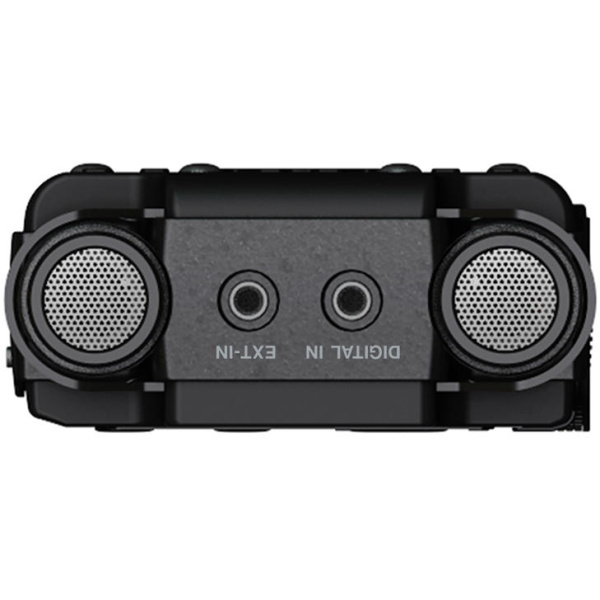

COAXIAL digital input is possible when the standard conversion cable is connected to the REMOTE/DIGITAL IN connector on the side panel and DIGITAL IN is selected from the Menu. It is compatible with IEC60958-3 (S/PDIF) format.
Mechanical switches allowing for simple and sure operation
Multiple mechanical switches can be found on the body allowing you to feel secure about operations, which is different from using menu operations. This ensures quick and secure operation.

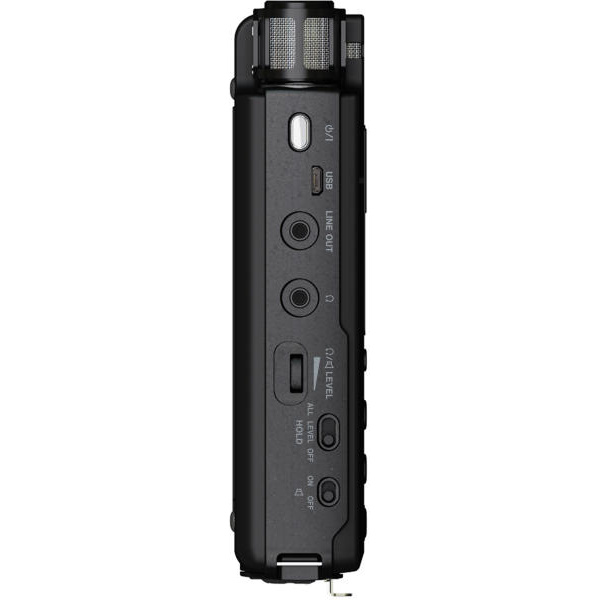

High-quality output via the line level output connector, which is independent from the headphones connector
The headphone output and line level output connectors are independent, which are integrated on most linear PCM/IC recorders. Because each has optimal circuitry, a high-quality line level output is achieved that is not possible with an integrated connector.
- Total of 4 microphones including 2 unidirectional condenser microphones and 2 omnidirectional microphones
- Locking XLR/TRS inputs compatible with +4dBu line level / +48V phantom power with 20dB of head room
- Dual battery system that can use two different types of batteries; the exclusive Li-ion battery and standard AA batteries
- Independent left/right adjustable large rotary input volume knob
- Rugged aluminum body for use in extreme conditions
- Digital input connector for lossless connection from playback devices
- Mechanical switches allowing for simple and sure operation
- High-quality output via the line level output connector, which is independent from the headphones connector
- High-quality sound from discrete parts
- AD/DA Audio4pro for professional audio
- Built-in 0.4W monaural speaker for sound source confirmation

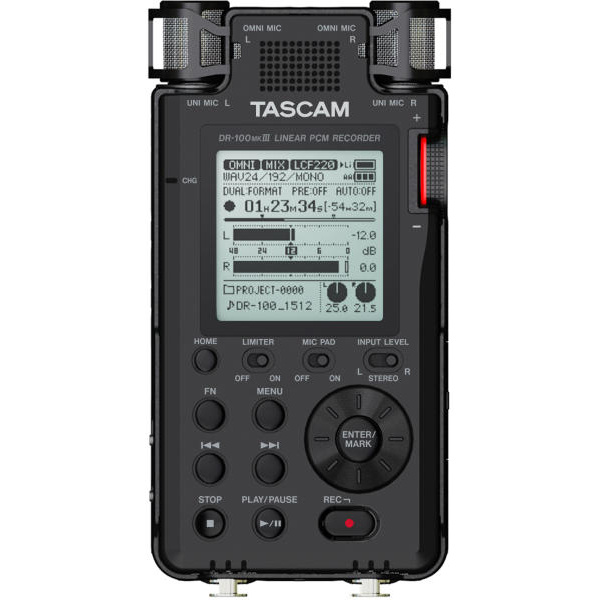

- 128×64 pixel backlight LCD

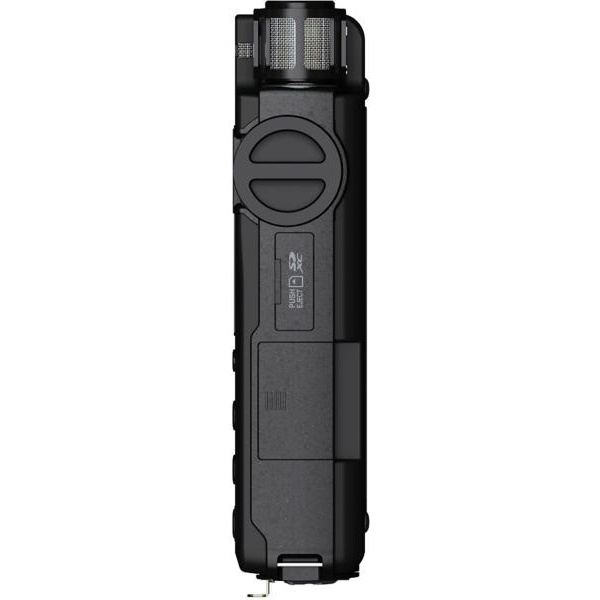

- SD/SDHC cards, which have broad versatility and are easy to use, can be used for recording media
- 24bit/96kHz high sound quality linear PCM (WAV) recordings and long recordings as MP3 files are possible (96kHz is only possible in HS Mode)
- Overdubbing function allows for new recordings to be overlapped onto recorded files *Overdub recording cannot be selected when prerecording is used
- Level control function for adjusting the auto gain control and limiter
- Three low cut filter levels that cut unnecessary low frequency noise such as from air conditioning equipment (40/80/120Hz)
- Auto recording function that can detect the sound input signal level and automatically start recording
- Prerecording function that can record up to 2 seconds prior to starting recording
- REC DELAY function for delaying the start of a recording to avoid recording the sound of pressing the RECORD button
- Mark function that can set up to 99 points for a single track
- QUICK TAG function for quickly identifying files
- File name format can be set to use a user-defined word or the date
- Auto track incrementing function that automatically updates files while continuing to record (Detection source: Level, size)
- Track incrementing function that creates new files at arbitrary locations during recording
- Playlist function that registers files you want to play back
- Repeat playback function (All/Single/A-B)
- Tempo change (VSA) function for adjusting the speed from 50% to 116%, which is great for practicing music and studying languages (This function is not available in HS Mode)
- Divide function for dividing files at specified locations (WAV files only)
- Japanese language display for MP3 ID3 tag (Ver. 2.4) is possible
- Audio file information such as the recording date/time and size can be confirmed
- High-speed file transfer to a computer via USB 2.0
- 2GB SD card is included

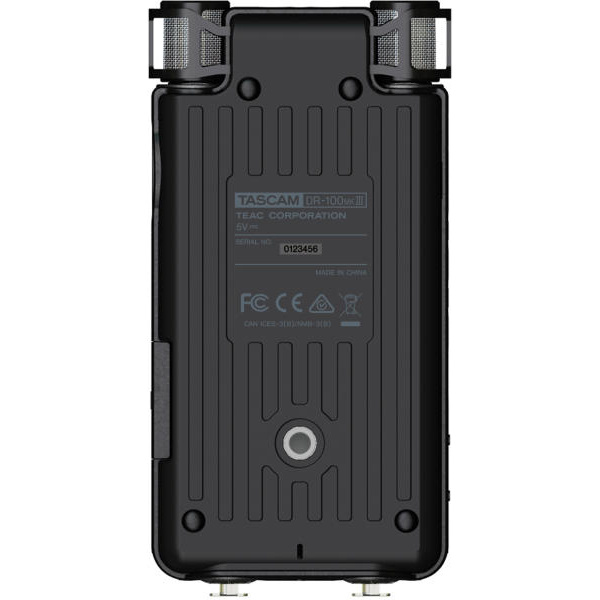

- Strong metal tripod attachment screw-hole at the bottom on the unit
- Includes the RC-10 wireless/wired remote control
- Includes a soft case and windsock
- Longer operation is possible by using the optional BP-6AA external battery pack
- Operation is possible by AC power using the optional PS-P520 AC adapter
- Mini USB cable included
